Rainwater, grey water and black water that occurs below the backflow level must be fed into public sewers via an automated lifting system without backflow. The principle applies to single-family houses as well as to public buildings used for commercial and industrial plants.

The wastewater flows into the collecting tank of the lifting plant via one or more inlets. When the wastewater in the collecting tank reaches a specific level, the pump switches on automatically and the wastewater is pumped into the sewer via the pressure line.

ACO Muli-Star DDP

Produktabbildung ACO Hebeanlage Muli-Star DDP 1 für fäkalienhaltiges Abwasser zur Freiaufstellung

Product advantages:

  • Import of complete machines from German
  • Compact erection dimensions for space saving
  • Low weight
  • Optimized impeller with high passing rate
  • All components with high chemical stability
  • One-piece sealed enclosure

Areas of application:

  • Suitable for areas with small or medium volume flow
  • Downstream of grease separator
  • Toilets
  • Multiple dwelling units
  • Offices, hotels and hospitals
  • Large-scale commercial complex
  • Buildings with kitchens

Product components

Polyethylene tank:

  • Tank total volume 300L/500L
  • Scour outlet R 1"
  • Service opening for simple maintenance, diameter: 340 mm
  • Fixing kit for attachment against floating
  • Connector for hand membrane pump DN 50

Inlet connection:

  • 1 horizontal intake socket DN 100
  • 2 horizontal intake sockets DN 150
  • 2 vertical inlet sockets DN 150
  • 1 vertical inlet socket DN 150
  • 1 ventilation socket DN 70

Connection pressure line:

  • Special backflow stop with ball in housing
  • With Y-branch
  • With special mounting adapter DN 100 for connection of 108 – 114.3 mm pipe external diameter pressure line
  • Connecting flange for stop valve DN80/PN16

2 grey water underwater pumps:

  • With 3-phase submerged motor pump: 400 V, 50 Hz
  • IP 68 protection
  • With overheating protection device for motors
  • With blockage-free free flow impeller
  • 10 m mains cable

Level switching:

  • Pneumatic level switching
  • 10 m control lines
  • Optionally with air bubble injection for increased operational security when installing downstream of grease separators (accessory)

Controls:

  • IP 54 protection
  • Potential-free collective fault message and operating signal
  • Import of complete machines from German
  • Rigorous programme logic design

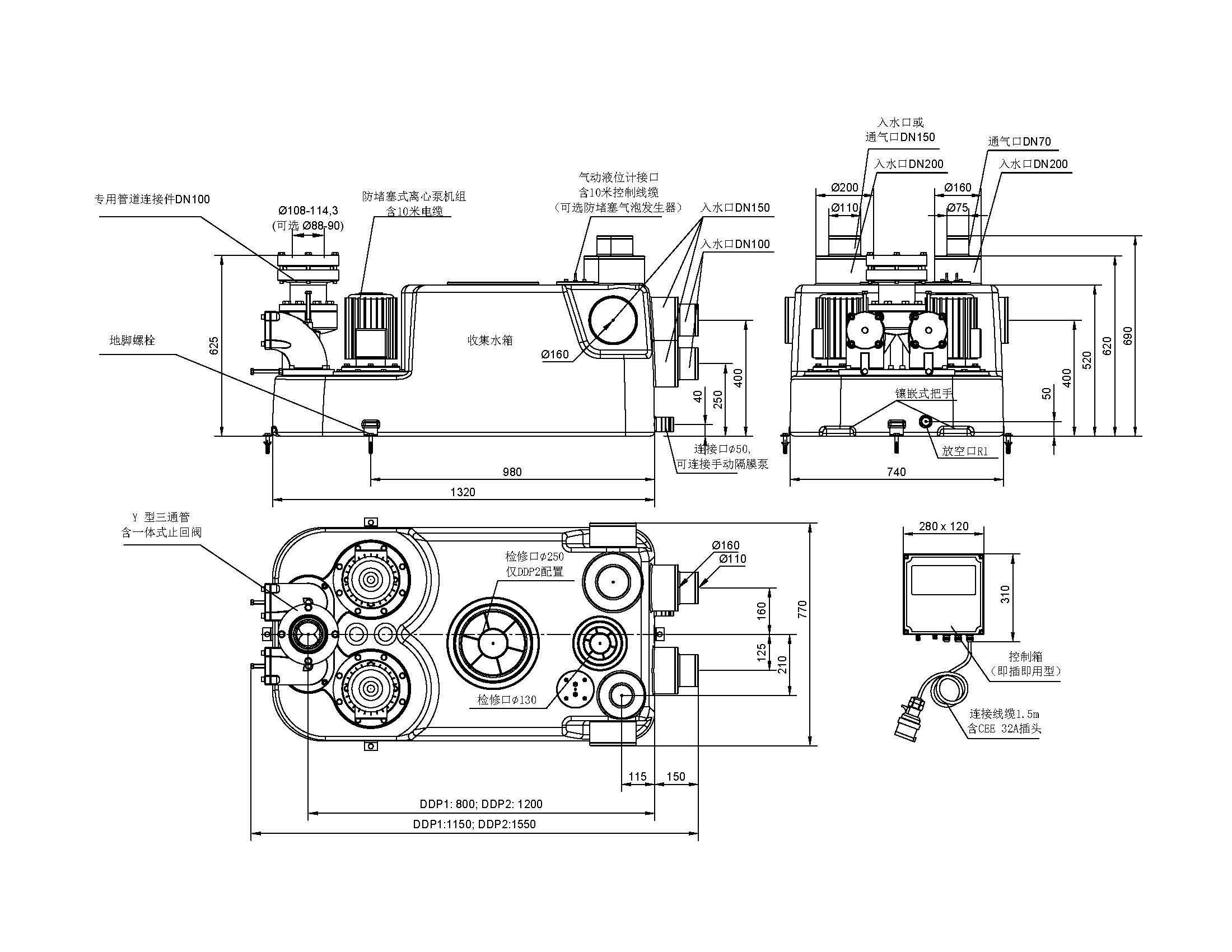

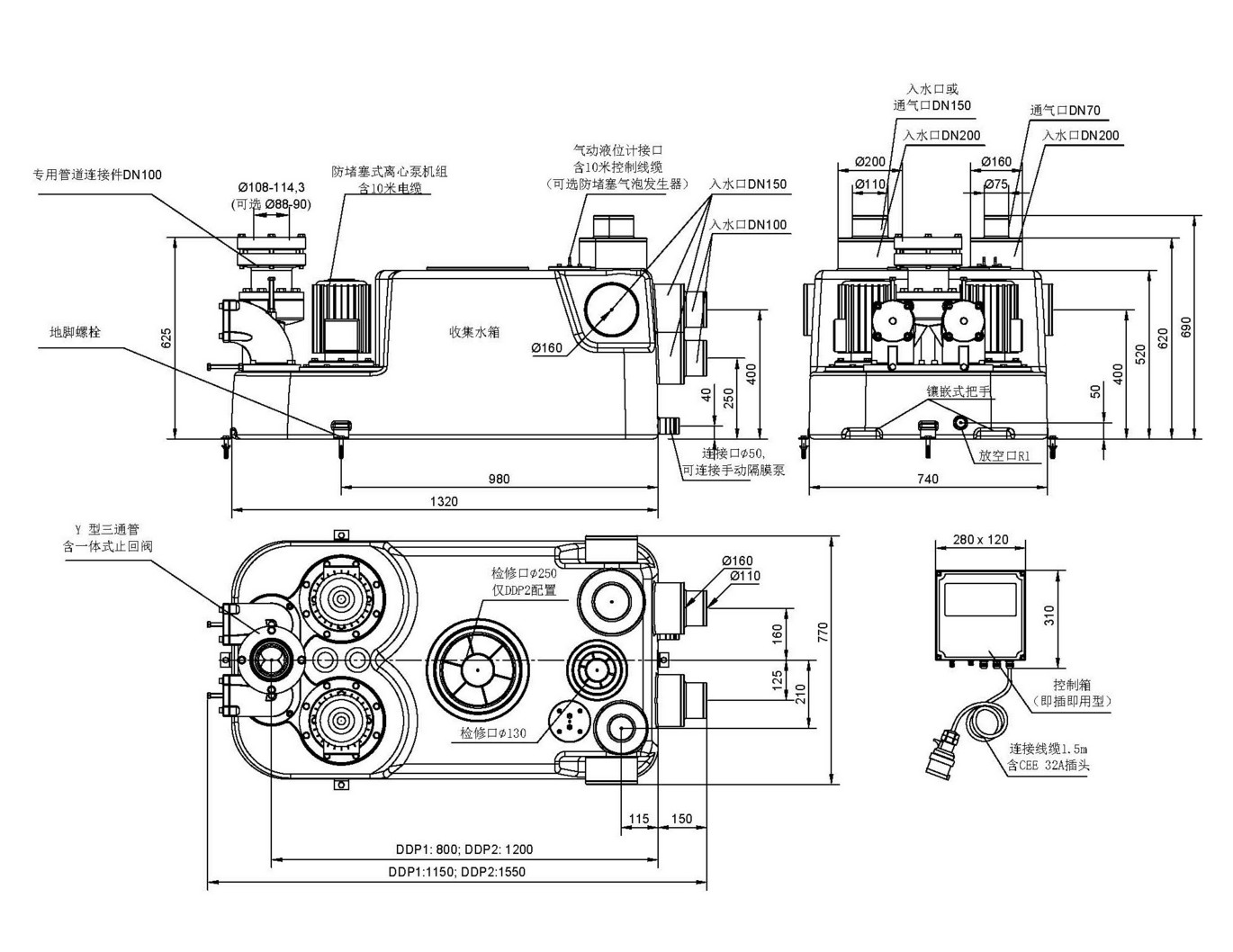

Muli-star-drawing-new-jpg

Model

Motor power (kW)

Key data

Granulation (mm)

Total volume

P1

P2

Current (A)

Voltage (V)

Muli-Star DDP 1.1

1.83

1.5

5

400

70

150L

Muli-Star DDP 1.2

3.45

3

10

400

70

150L

Muli-Star DDP 2.1

1.85

1.5

5

400

70

300L

Muli-Star DDP 2.2

3.45

3

10

400

70

300L

Muli-Star DDP 2.3

6.71

5.5

11.6

400

70

300L

Model

Delivery head

Delivery flow Q with overall delivery head H

Media temperature

4m

6m

8m

10m

12m

14m

16m

18m

20m

22m

Normal

Maximum

(m)

(l/s)

(l/s)

(℃)

(℃)

Muli-Star DDP 1.1

4 – 9.5

14

11

7.5

1.5

40

65

Muli-Star DDP 1.2

6 – 16

15

13.3

11.4

9.4

7.1

3.51

40

65

Muli-Star DDP 2.1

4 – 9.5

14

11

7.5

1.5

40

65

Muli-Star DDP 2.2

6 – 16

15

13.3

11.4

9.4

7.1

3.51

40

65

Muli-Star DDP 2.2

6 – 26

18.3

16.6

15.5

14.2

12.4

10.72

9.28

7.22

5.6

40

65
